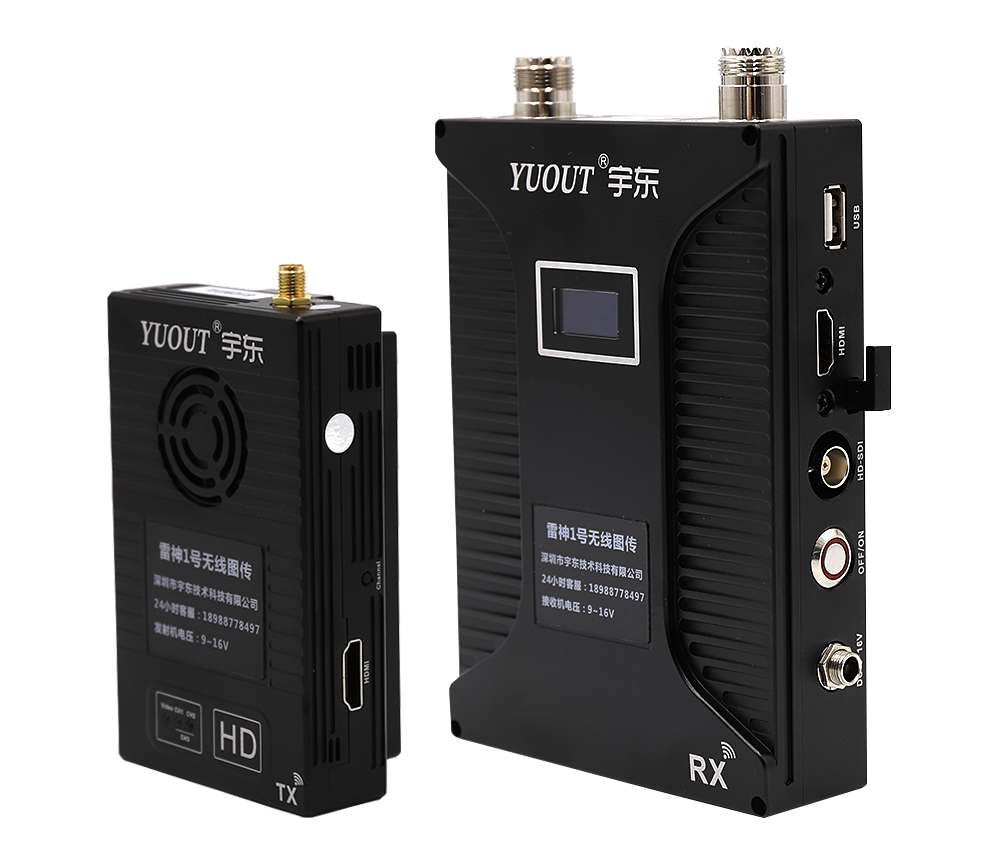

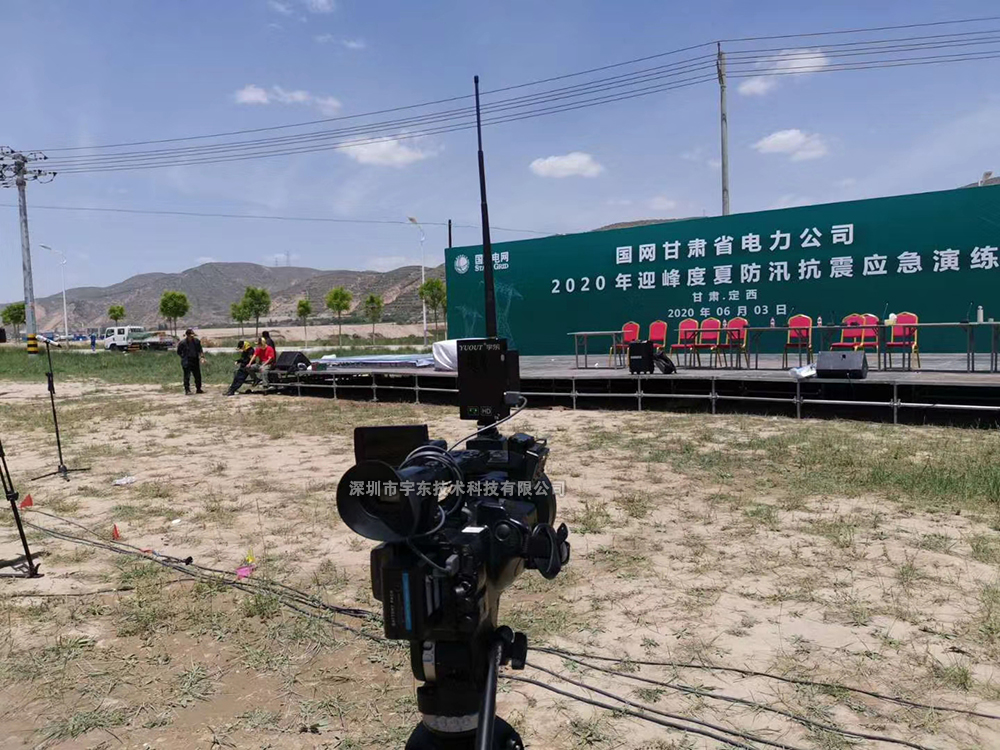

THOR 1-H wireless picture transmission system, ground visual distance: 1 ~ 1.5 km; Non-visual distance: 200 ~ 600 meters. Depending on the actual application environment, HDMI signal input, SDI signal output, plug U disk can be directly recorded. The main non-visual range (the environment is complex, can go through the wall, many people, many cars, many trees and many obstacles), Raytheon 1-H HD wireless image real-time transmission system is mainly used in radio and television stations, film and television shooting, drones, live education, large-scale concerts, film and television production, sports broadcasting, social news, air live, studio and other aspects.

Transmitter technical parameters
Operating frequency band: 300 ~ 800MHz frequency can be customized
Output power: 800mW
Channel bandwidth: 6/8 MHZ
Number of channels: 3 channels
Modulation mode: COFDM
Error correction method: 1/2, 2/3, 3/4, 5/6, 7/8
Protection interval: 1/32, 1/16, 1/8, 1/4
Encryption mode: The 128-bit AES key is dynamically adjustable

Audio and video part
Compression format: H.265
Audio and video input: digital 3G-HDMI
Image definition: HD1080P 50/60Hz, HD1080I 50/60Hz, HD720P 50/60Hz manually adjustable
Image frame rate: standard 24, 50, 60 frames/second, compatible with other frame rates
Video input physical interface: HDMI, standard interface
Audio input physical interface: HDMI, standard interface
Ethernet input: can connect to Ethernet terminal, not enabled, need to be customized

Other parts
Power supply mode: BP-U30
Indicator: video source display, frequency band channel display
Fixed: The bottom is provided with 3 hot boots, tripod fixing holes
Operating temperature: 60℃ ~ -40℃
Dimensions: 104*65*23mm(L * W * H)
Weight: 200g

Receiver technical parameter
Operating frequency band: 300 ~ 800MHz frequency can be customized
Output power: 800mW
Channel bandwidth: 6/8 MHZ
Number of channels: 3 channels
Modulation mode: COFDM
Error correction method: 1/2, 2/3, 3/4, 5/6, 7/8
Protection interval: 1/32, 1/16, 1/8, 1/4
Encryption mode: The 128-bit AES key is dynamically adjustable
Receiving sensitivity: ≤ -96dBm@8MHz
Signal indication: Receiving signal percentage display
Insert U disk can record directly

System part
Receiving polarization: vertical polarization
Receiving antenna: dual antenna receiving

Audio and video part
Audio and video output: digital SDI
Output clarity: HD1080P 50/60Hz, HD1080I 50/60Hz, HD720P 50/60Hz manually adjustable
Image frame rate: standard 24, 50, 60 frames/second, compatible with other frame rates
Audio and video output Physical port: SDI standard port

Other parts
Comes with LED LCD parameter display
Fixed: The bottom is provided with 3 hot boots, tripod fixing holes
External power supply: Radio and television B-port DC 9-16V
Battery power supply: V-type buckle, broadcasting V-type battery
Dimensions: 154*110*35mm(L×W×H)
Weight: 520g
